Basic structure and operating principle of glass washing machine

Since most factories on the market have a common problem, that is, the cleaning of the original glass. Finding labor is not only dangerous but also expensive, and the effect may be poor. Therefore, there are solutions when there is a need, and the glass washing machine was born. The glass washing machine is almost a piece of mechanical equipment that every factory must have, so do you know its principle and structure?

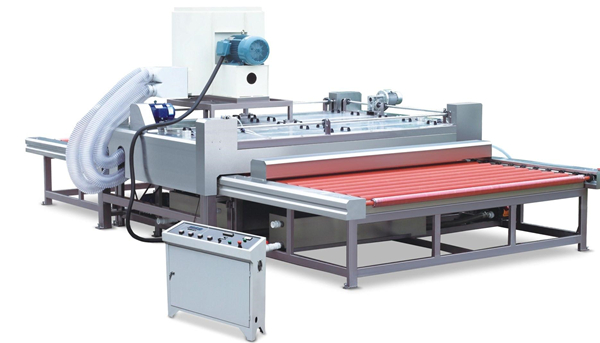

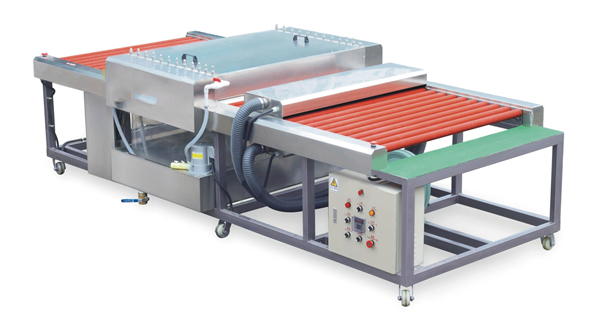

Structure and operating principle of glass washing machine:

Most of the glass washing machine is composed of an electric control system, a conveying system, and a cleaning part. The cleaning part is composed of rolling, drying, and hot air (optional).

Cleaning Department

1. Six rolling brushes:

It is used to clean stains on the surface of the glass. The brush is an integral structure. The upper brush can be adjusted by the panel to adjust the overall lift to suit the cleaning of glass of different thickness.

2. Flushing system:

Equipped with a circulating water pump, and with 3 stainless steel water tanks (integrated), the water tank can be drawn out for easy cleaning. When the cleaning effect is high, the last two sets of roller brushes must be connected to pure water.

3. Use 2 pairs of cold air knives (special high pressure device) to dry the water on the surface of the glass. Within the adjustable speed range, there is no residual water on the upper and lower surfaces of the glass after cleaning. It is equipped with a corresponding fan and a filter air box.

Conveyor system

The conveying roller shaft is driven by gears, frequency conversion motor, digital display, and the speed range of the regulator is 1-12 m/min.

Electric control system

Electric control components are selected from famous brand products, and the control circuit is equipped with overload, phase loss, and short circuit protection functions to ensure safe and reliable operation of the machine

The above is the structure and principle of the glass washing machine that the editor has read a lot of information to share with you. I hope it will be helpful to everyone. Gebo Industry is a well-known manufacturer of glass machinery in China. It has been well received by the industry for smooth operation and quality. Superior and dedicated service, we look forward to working with you
