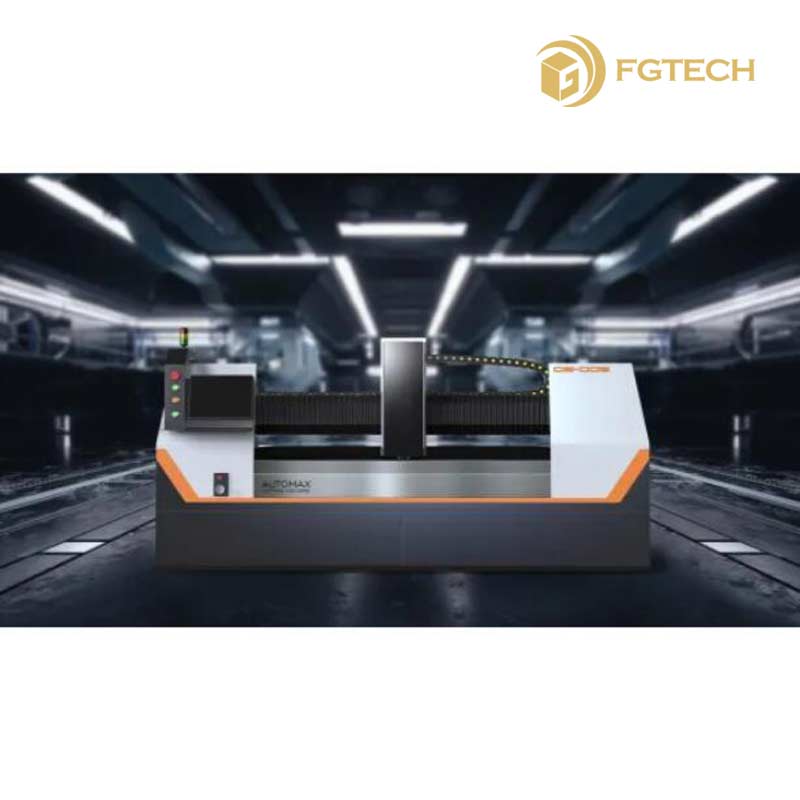

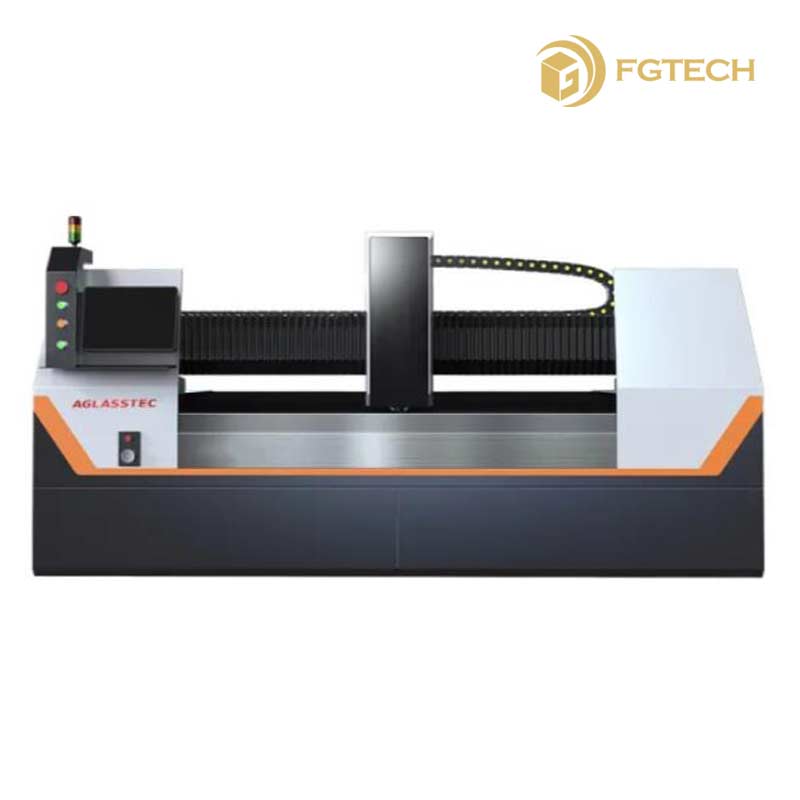

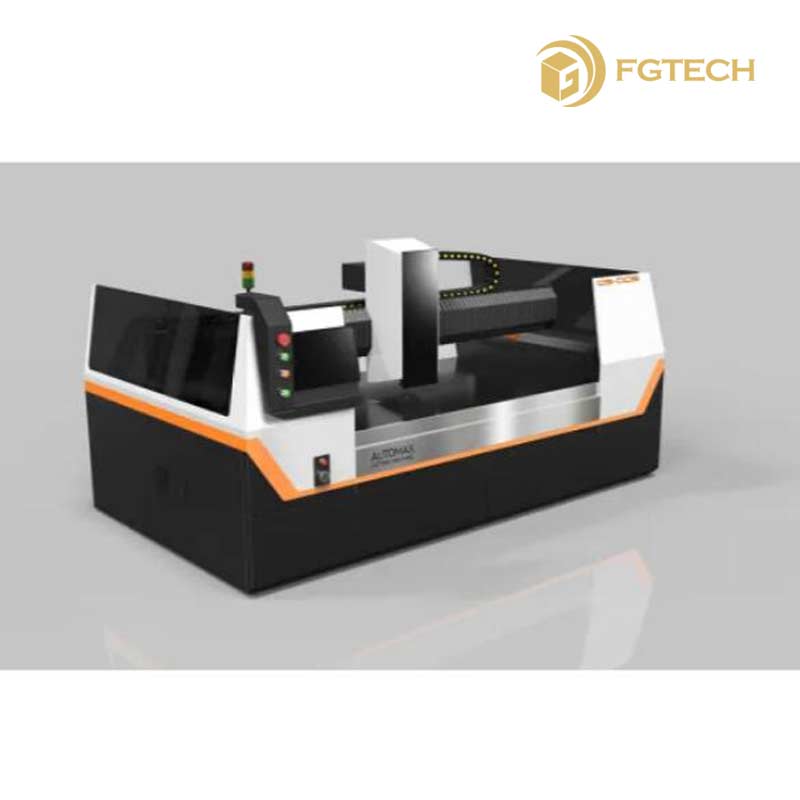

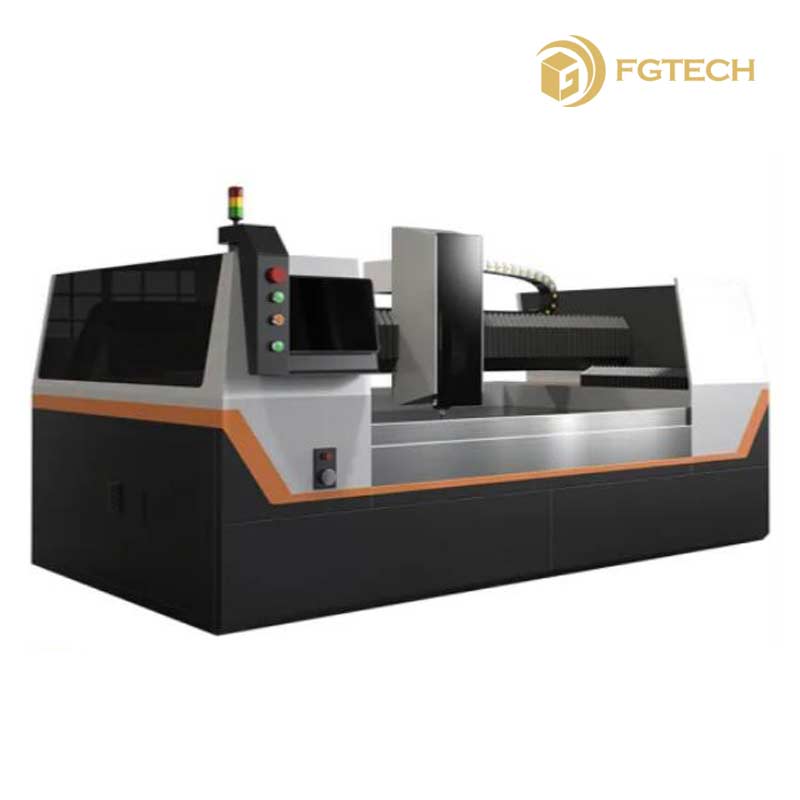

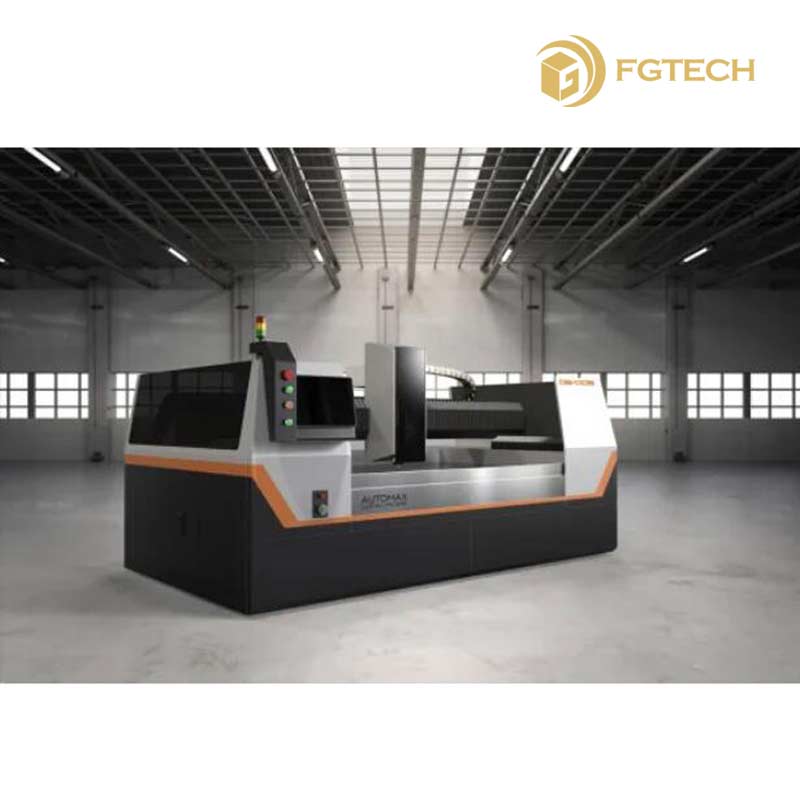

Product Description
Basic Info.
Model NO.
FGD-HW2515
Condition
New
Trademark
AGLASSTEC
Transport Package
Suitable for Sea Transportaiton
Specification
2500*1500mm
Origin
China
HS Code
8464901900
Technical Parameters
| CNC GLASS CENTER SPECIFICATION |
| Work Table Size:2700X1700 |
| Grinding speed Range:1-15m/min. Max. Rough Grinding Speed: 15m/min; Max. Fine Grinding Speed: 15m/min; Max. Polishing Speed: 8mmin |
| The CNC can realize automatic tool switching in multiple working procedures including grinding round edge and straight edge. |
| The vacuum cup is made of high-quality rubber. Equipped 10 pcs vacuum cup with machine. |
| Positioning pile using pneumatic positioning is accurate and reliable. One machine equipped with 8 sets of positioning piles. |
| DB polishing wheel can automatically compensate electric pressure, wheels compensation automatically. |
| CNC control system, four axis control, remote collaboration function |
| Delta servo motor and servo drive. |
| Delta high-speed spindle frequency conversion drive & frequency converter. |
| Linear guide rail and ball screw adopt Taiwan TBI or HWIN products, which has automatic electric oil pump for lubrication, and the screw has double nuts. |
| High speed variable frequency spindle which is water cooling, and max. speed :9000RPM if for home-appliance glass. Tool swift is pneumatic control. |
| Water ring vacuum pump 2.2kw maximum negative pressure - 0.093mpa |
| The flexible part of the cables use the special towing cable for cnc machine |
| Machine table use the thickened industrial aluminum plate. |
| Machine protection cover and water tank use stainless steel |
| Installation parts: one set of tools, one set of manual book. |
| Onsite installation and training, 3 days. Maintenance training, one day. Operation training, two days. |
| Total power is 15KW. Dimension of equipment: 4500X2500X1800mm total weight 4000KG. |
| CNC GLASS CENTER CONFIGURATION | |||
| Travel Distance | X-axis | 2100mm | |
| Y-axis | 2700mm | ||
| Z-axis | 160mm | ||
| Distance from Spindle to Working Table | 150mm | ||
| Glass Thickness | 4-10mm | ||
| Accuracy | Positioning accuracy | ±0.05 | |
| Repeat accuracy | ±0.03 | ||
| Machine Weight and Power | Weight | 4 tons | |
| Installation Power | 15kw | ||
| Machine Size | 4500*2500*1800 | ||
| Air Source | 0.6mpa, 0.3sqm/hour | ||
| Water Supply | 60L/min | ||
Working Table |
Working Table Size | 2700X1700mm | |
| The Max. Weight Load | 200KG | ||
| Material | Industrial Aluminum Panel or PVA | ||
| Machine Frame | Machine frame is welded by 210*150mm steel square tube, and designed with obliquity for water flow. |
| Machine Frame | Machine frame is welded by 210*150mm steel square tube, and designed with obliquity for water flow. |
| Machine beam is welded by 300*200*10mm steel square tube | |
| Machine frame and beam did anneal treatment, and VSR treatment | |
| Waterproof and Protective Panel | Working Table is surrounded by stainless steel protective panel |
| Beam top and bottom also have stainless steel protective panel | |
| There are SS oil groove of guiderail of Y axis to avoid rusting after long time working which will affect the accuracy | |
| There are alarm panel in orange color beside at two side of the machine | |
| The machine equipped with stainless steel water tank. | |
| There are water proof panel on X axis and Y axis | |
| Electric and Pneumatic Control System | CNC control system, four axis control, remote collaboration function |
| Servo motor and servo drive use product from Delta | |
| High speed spindle is frequency drive and use Delta Inverter | |
| Industrial computer uses I5 processor | |
| Displayer is 18.5-inch LCD | |
| Intermediate relay is from products from Schneider | |
| Power supply switch is also from Schneider | |
| Sensors are from Omch or Omron | |
| 4 axis hand wheels | |
| Signal lamp installed to show machine running status | |
| The system has voltage compensation function or linear compensation function | |
| Drawing software with processing program generation function | |
| The system has function of adjusting polishing wheel | |
| The system has function of adjusting leveling of working table | |
| Spindle | Spindle motor rotating speed is 2000-9000Rpm |
| Spindle Motor: 7.5kw | |
| Spindle Sealing Mode: pneumatic sealing |
Spindle Cooling Mode: recycle water coolingSpindle handle use BT40 and with locking baseSpindle has zero frequency detection functionOther Main PartsLinear guiderail is from HIWIN, size 35 and 30Screw is from TBI 4010 with double screwsVacuum pump use 4kw water ring vacuum pumpPressure pump is 1.8kwCooling pump is cooling pump special for high speed spindleOil pump is 1.8L automatic oil pumpThe drag chain cable adopts bending resistant high flexible cableParts Send with the MachineSucker8PcsPositioning Pilers8PcsProximity Sensor4PcsSolenoid Valve2PcsAir pipe 8mm15MetersIntermediate Relay2PcsBT40 Tool Handle2PcsBT40 Tool setting bar1PcsGrinding Wheel1Set
