Basic Info.

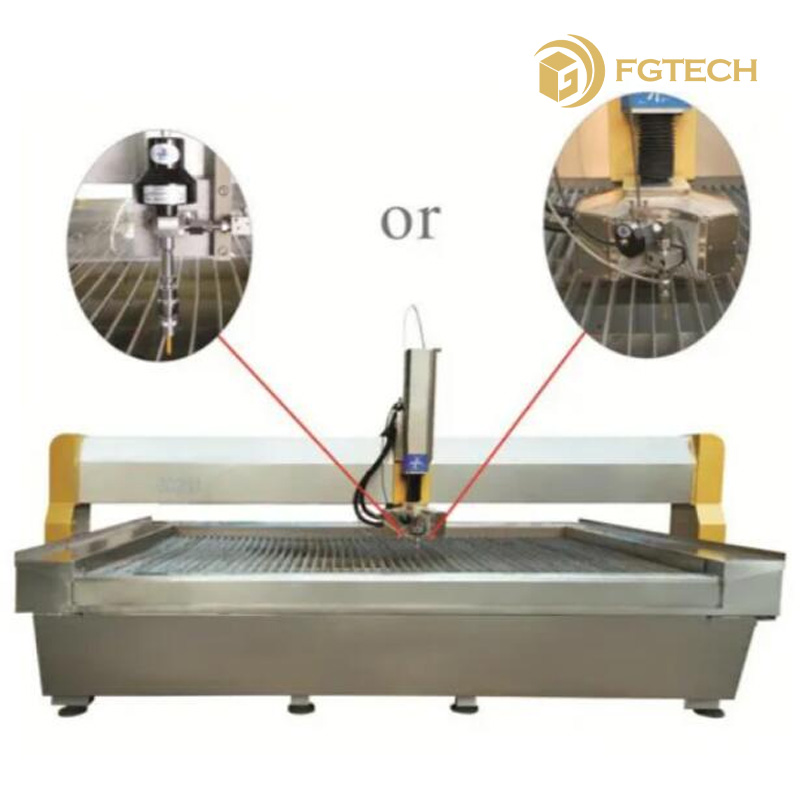

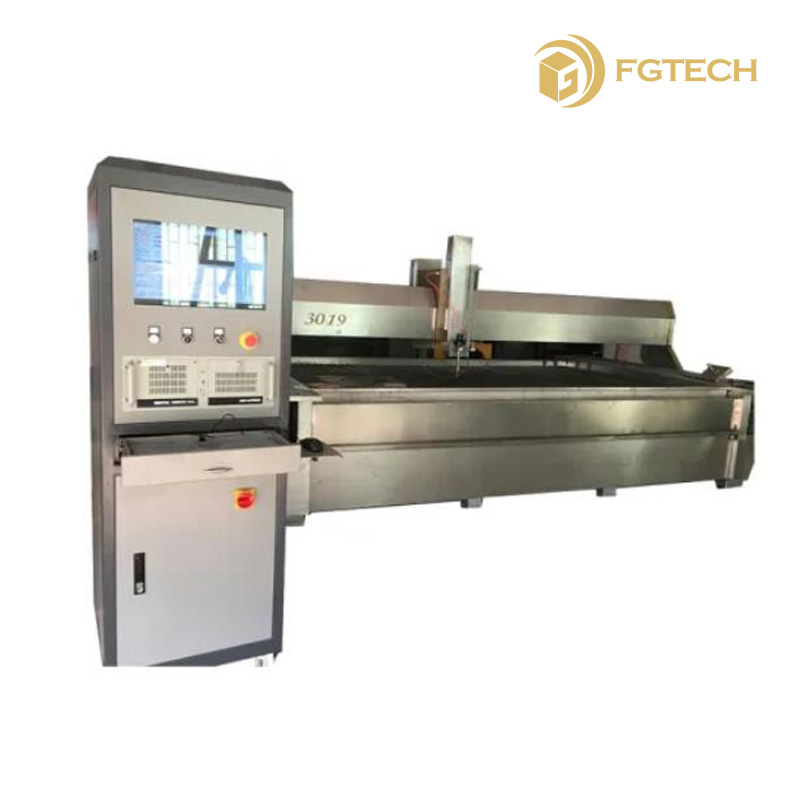

With the imported intensifier, 4000B - 3019A Waterjet machine, Max pressure is 380MPA and working pressure is 300-330MPA.The pump use aircooling system(do not need cooling such as cold water machine or cooling tower etc.),connect the electricity can immediately use, CNC Cutting table is Gantry type;Go together with the auto abrasive delivery system.
| number | The main function |
| 1 | Cutting table Size(X×Y): 3200mm×2100mm |
| 2 | X Axis Cutting stroke:3000mm |
| 3 | Y Axis Cutting stroke: 1900mm |
| 4 | Z Axis Cutting stroke: 120mm |
| 5 | Gantry structure makes the machine have good stability and rationality |
| 6 | X Axis whole turn |
| 7 | Stainless steel catcher tank and out Plate : No rusty |
| 8 | ball bearing screw and linear guide,guarantees a high accuracy |
| 9 | Special designed Cover guarantees a long using life of the Motion |
| 10 | Lubricated system provides a simple and easy maintenance |
| 11 | Repeat accuracy: 0.05mm |
| 12 | Rapid position speed:10000mm/min |
| 13 | travel limit protects function |
| 14 | Taiwan ABBA ball bearing screw |
| 15 | Taiwan ABBA linear guide |
| 16 | The operation is simple, convenient, easy to learn |
| 17 | The horizontal beam is aluminum alloy manufacturing,guarantees a best stability and no shake or distortion ever with a high speed operation. |
| 18 | X Axis and Y Axis adopt Japanese Yaskawa servo system, guarantee a high cutting accuracy, high speed , increase production |
| 19 | X Axis ball screw no turn, its nut turns |

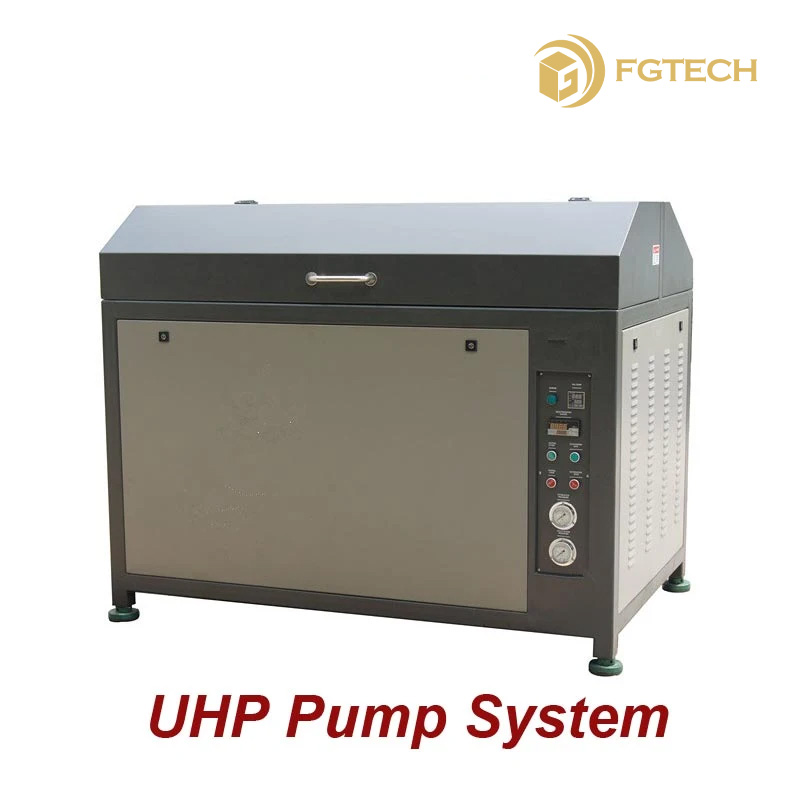

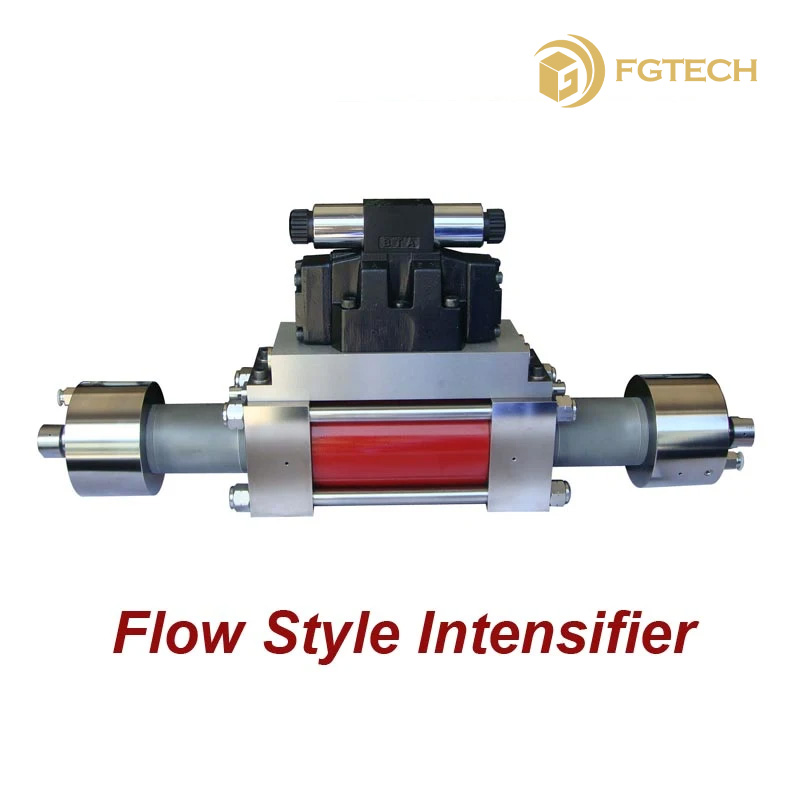

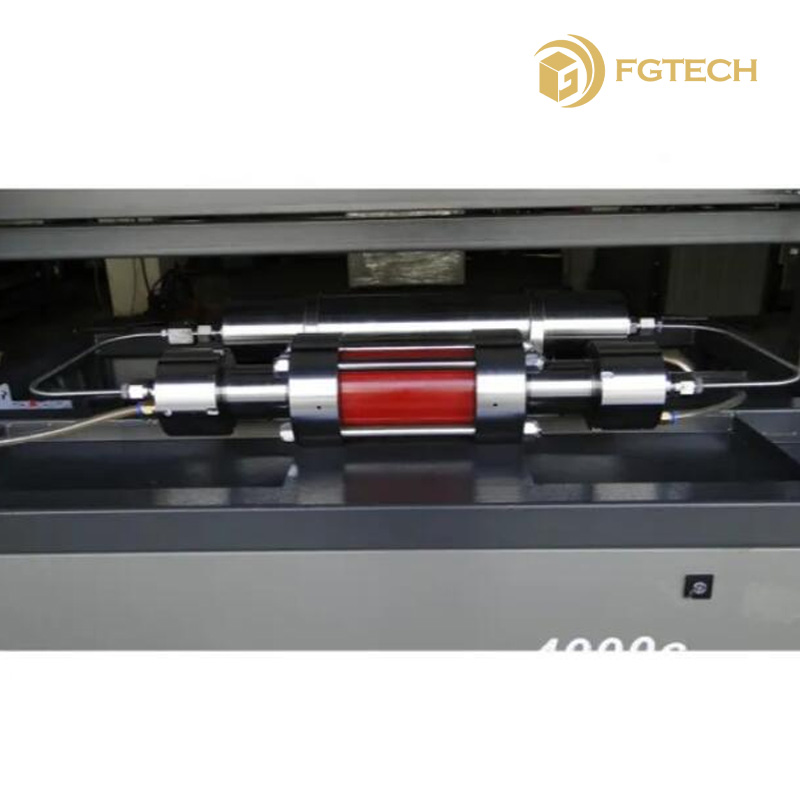

| 1 | Flow style intensifier imported from USA |

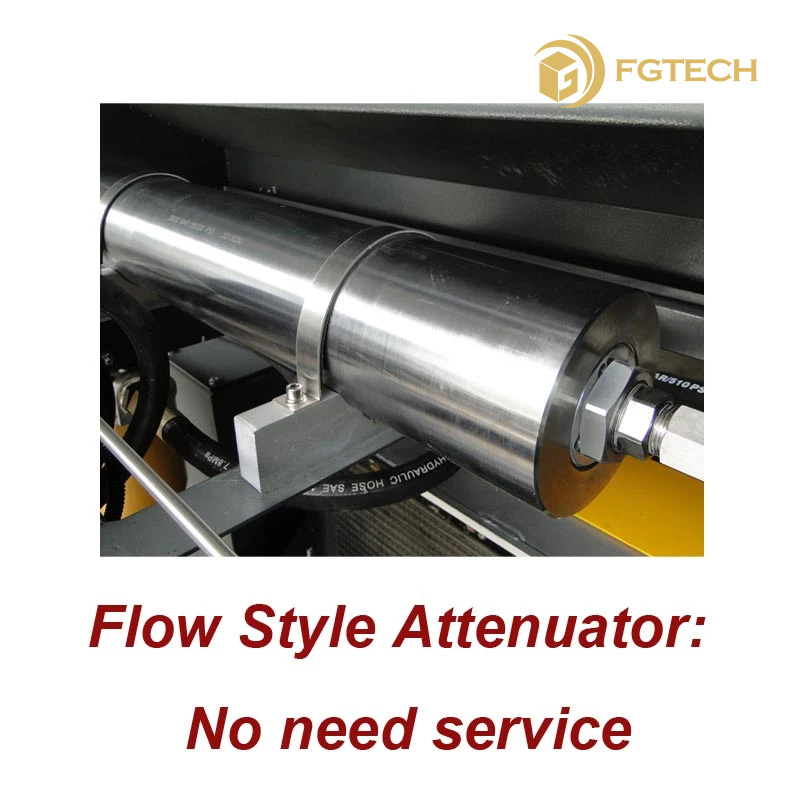

| 2 | Flow style Attenuator let the High Pressure more stable, cutting faster |
| 3 | Max pressure:380Mpa(55000psi) |
| 4 | Working pressure:300-330Mpa |
| 5 | Max water flow:3.0L/MIN |
| 6 | Orifice(dia): 0.30mm |
| 7 | Power: 30KW/40HP/380V/50HZ |
| 8 | Shift way:electric shift |
| 9 | The work pressure can arbitrarily move to regulate |
| 10 | Oil temperature numerical gauge,too high automatically shut down |
| 11 | Numerical HP Gauge |
| 12 | Over pressure automatically shuts down function |
| 13 | Equipped with Double Pressure Valve. The low pressure drills hole function and cut brittleness material no broken |
| 14 | Cooling way:Air cooling type |

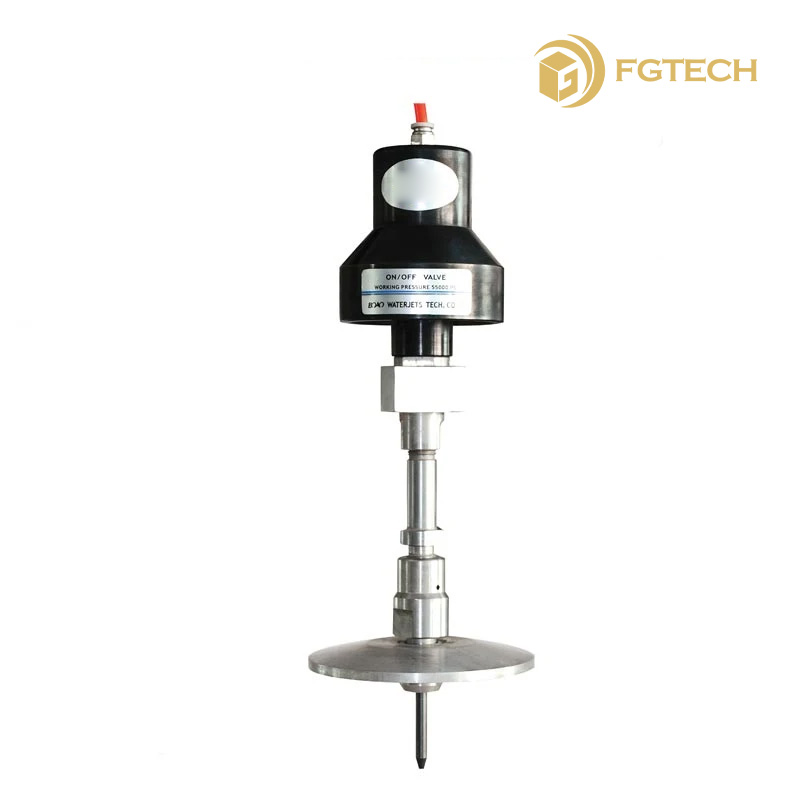

3. HP ON/OFF Valve
On/off Valve designed by the USA;
Air Actuated valve can carry out high pressure water sudden open and close, consumedly reduced Water back;
CNC assistance function to carry out the automatic control of the high pressure water;
Holding pressure adjustable,reduce the time of piercing;
Act intelligent credibility.

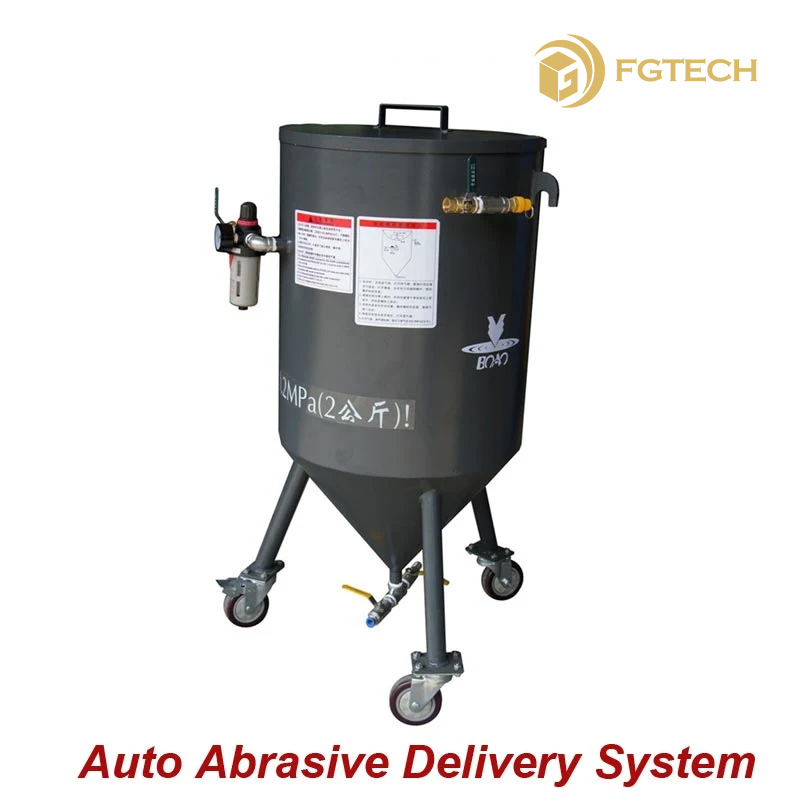

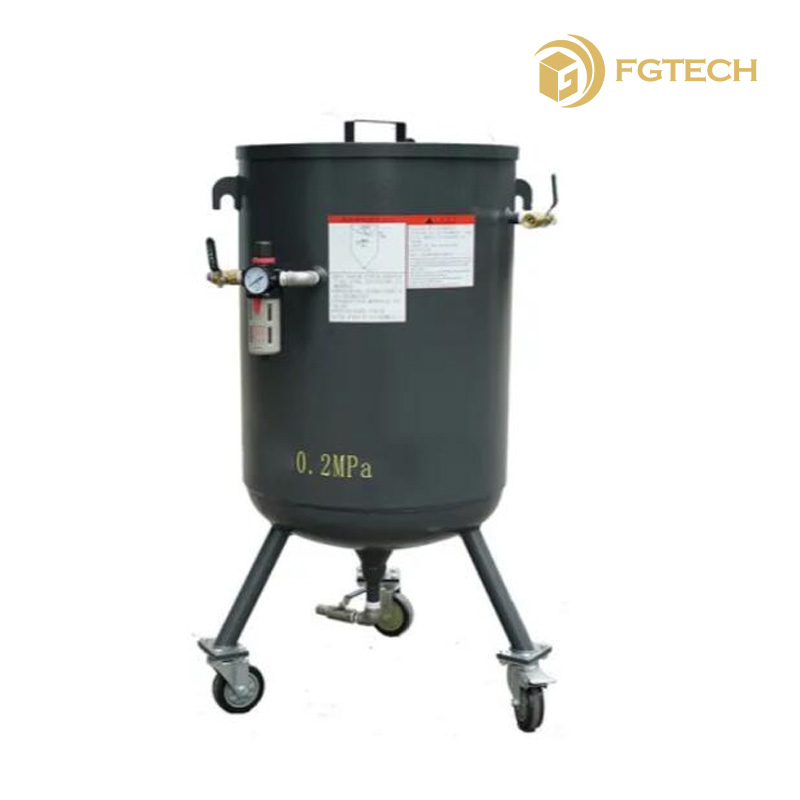

4. Abrasive delivery system
Hang type abrasive box;
Automatically inhale abrasive;
Regulate the amount of abrasive;
Auto Abrasive Delivery System has the abrasive and delivery the abrasive to the bucket automatically the design shows BOAO continuous efficiency and reduce labor requirements.
5. Cutting Head
Imported DP2000 style cutting head
The American type Orifice Assembly;
From corrected function to reduce time of assemble;
Spare parts replaces very conveniently.

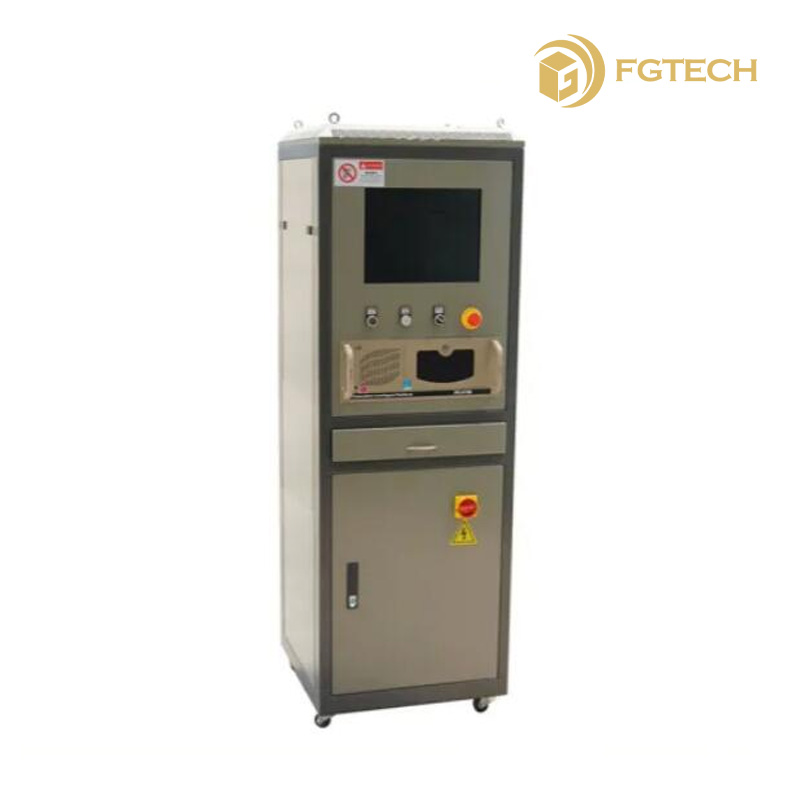

6. Controller System
Windows XP waterjet software .The design is user-friendly;
Pc-base famous industrial computer,G-code style controller;
Simple electric design,PLC control;
Program synchronous sketch emulation, avoid processing a mistake;
Add up HP time;
Automatically control cutting inlet and outlet, automatic show the length of cutting trace for calculation cost, save operation time;
You can set X.Y axis travel sot spacing.Avoiding cutting head exceed the travel;
The small arc automatically decelerates function;
You can set the starting frequency of the servomotor;
