Glass Beveling Machine

Description of the Equipment

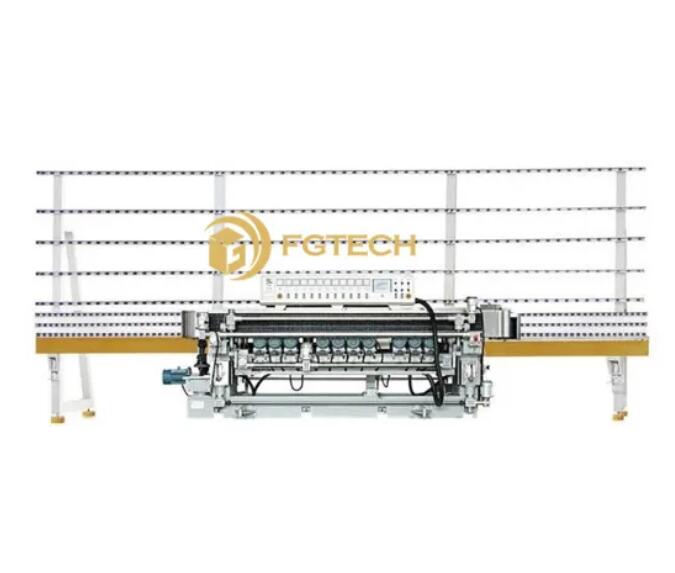

1.  Glass straight- line beveling machine, Model No.: FGE-VB371
This machine is specially designed for making bevel on on glass or mirror.

Technical Specification:

Description:

1. Front conveyor track height adjustment.

This machine is designed to make bevel on small glass and big glass.  The front conveyor track can be moved up and down according to glass size.  For small glass size, the front conveyor track can be moved downward.  For big glass size, the front conveyor track can be moved upward


1. Control

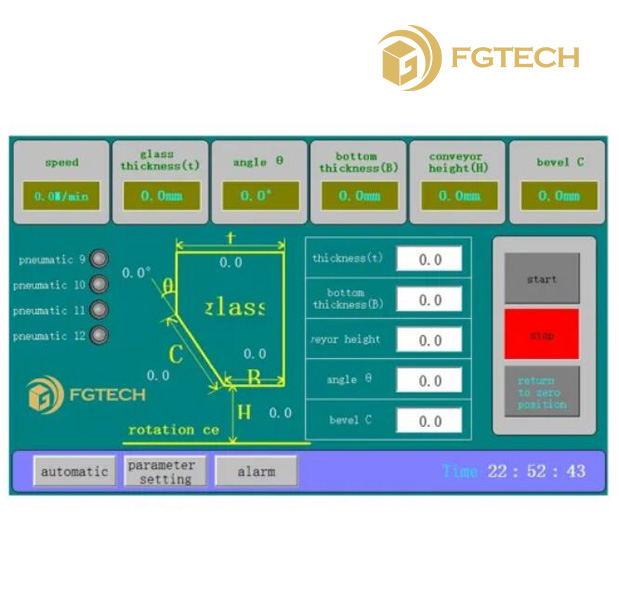

This machine adopt PLC control and operator interface.  The Screen can show glass thickness, bevel angle, bevel width and back track height.  The machine can be set automatically through computer, or can step by step setting through the switch on control panel.
  Automatic setting

setting manually through switch.


1. Basement and frame:

Are made of cast iron to ensure stability and solidity.

1. Conveyor:

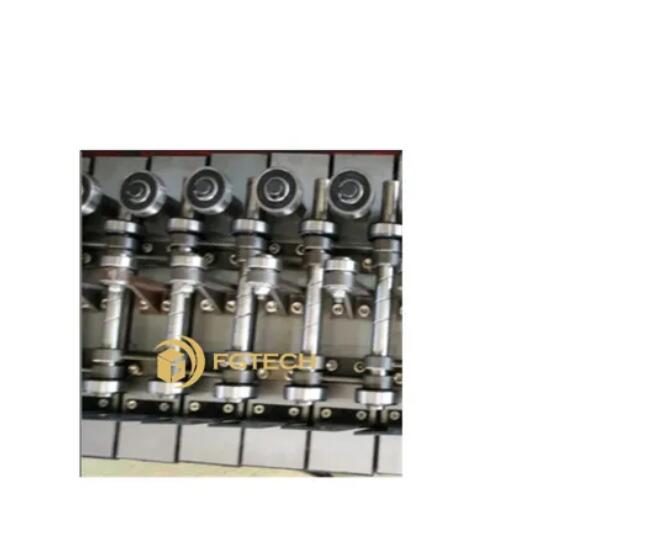

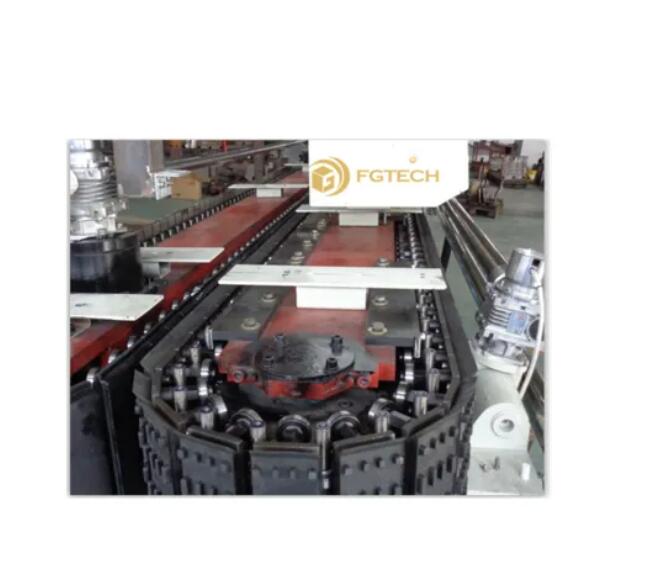

Front and back Conveyors use ball bearing conveyor, the drive gear directly drive the roller of each pad.  This system is very strong and suitable for small glass (30mmx30mm) and heavy glass(4mx4m) processing.

Back conveyor has cleaning brush, which ,maintain a clean surface and guarantee working result.


1. Motor

Use high precision low vibration ABB motor, specially for beveling machine.


1. Loading/offloading conveyor

adopt timing belt.


1. Front rail movement:

Motorized, it can move in parallel to adapt to different glass thickness.  There is a mechanical thickness readout to show conveyor opening.


1. Glass support frame

Use aluminum bar with blue plastic roller.


1. Lubrication:

The machine equipped a automatic lubrication pump, which lubricate the front and back conveyor.

All the sliding surfaces (including front conveyor movement, grinding beam moving section, motor plates) are lubricated by oil system.  The well designed oil lubrication system make sure machine's life time and long-time smooth running.


1. Working speed adjustment:

through frequency inverter system.  The inverter use Mitsubishi.


1. Amperometer meter:

check the wheel assportion.
H)  Water system
Water is circulated in the machine and stainless water tank.  Wheel tank outlets connect with one stainless drain pipe which is very easy for installation.  The square water tube for water inlet is connected with each wheel nozzle.

I).  Felt wheel use pneumatic system.
Configuration of grinding wheels:

Spare parts:
